Sketch Series Four

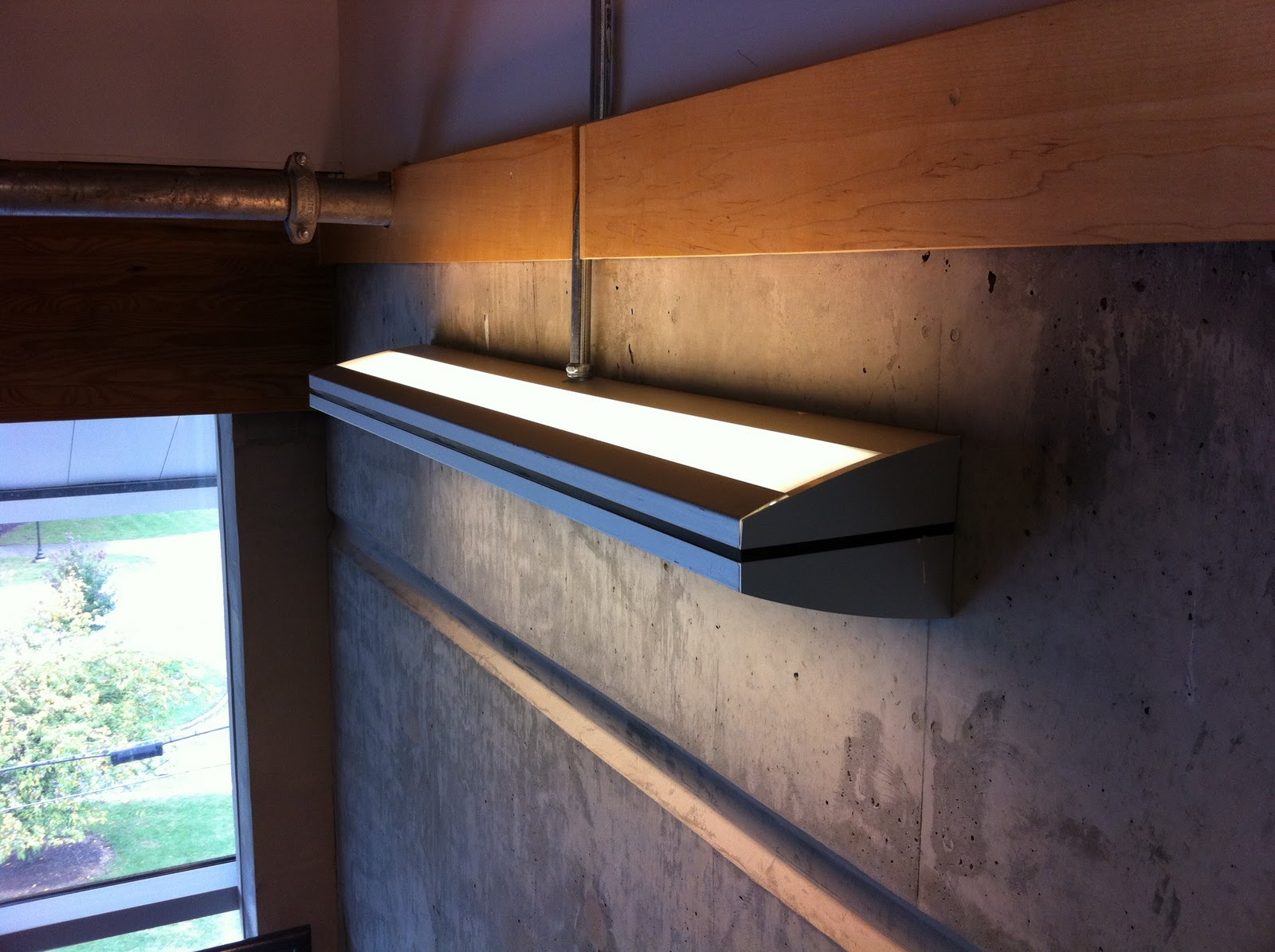

THIRD & FOURTH FLOOR STAIRWAY: GATEWOOD BUILDING

A. Type of luminaire: semi direct

B. Mounting Type: surface mounted

C. Lamping: 2 lamps, fluorescent

D. Construction: length-48" diameter-1" shatter resistant

E. Manufacturer: TCP

F. Photometrics: lumens-3,400 (initial), 3,200 (mean), color temp. 4,100K, CRI-85

G. Material and finish: acrylic and plastic

H. Lensing: acrylic

I. Function: fixed

J. Ballasts: specific voltage, non-dimming, program start, thermal fuse and internal to luminaire

K. Environment: dry

L. Shielding: plastic covering with no baffles or louvers

A. Purpose of the space: a stairwell as a means of egress from the building

B. Purpose of lighting: allows the users to navigate vertically throughout the space

C. Luminaire effect: a light which during the day provides some extra lighting but not really necessary but at night allows the occupants to travel up and down the stairs

D. Improvements: the up lighting that happens in the space almost seems unnecessary to me and some of the lights placements don't seem well suited
